| Code | 670310 | Type | LED Collimated Light Sources | |
| Dimensions | 46mm × 46mm × 12.5mm | Thickness | 12.5mm | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodized | |
| Clamping Diameter | Ø32mm | Optical Mounting Method | Nylon-tipped screw fixing |
Traders City price 16.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Thickness: 12.5 mm
Material: 6061-T6 Aluminum Alloy
Compatible Optics: Ø32 mm components (LED collimated light sources)

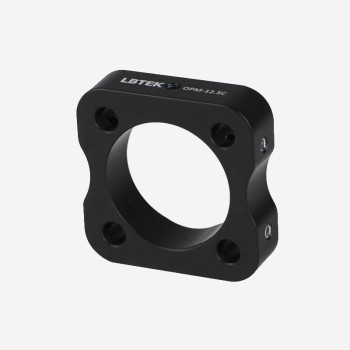

The LBTEK 30 mm Cage System Mounting Plate is designed with a clear aperture, suitable for mounting Ø32 mm LED collimated light sources. The plate includes four through-holes compatible with 30 mm cage systems and can freely slide along cage rods, secured in place with side M4 cup-point set screws. The light source is locked by an M4 nylon-tipped setscrew on the top of the plate, tightened with a 2 mm hex wrench. An additional M4 mounting hole is provided at the bottom.
Included Accessories
2 × M4 cup-point set screws
1 × M4 nylon-tipped setscrew
1 × 2 mm hex wrench
