| Code | 670214 | Type | Blazed Gratings | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodized | |
| Mounting Diameter | Ø25.4mm | Clamping Height | 20 – 40mm | |
| Clamping Thickness | 5 – 10mm | Minimum Clamping Width | 18mm |
Traders City price 146.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Material 6061-T6 Aluminum Alloy
Clamping Height 20 – 40 mm
Minimum Clamping Width 18 mm
Clamping Thickness 5 – 10 mm

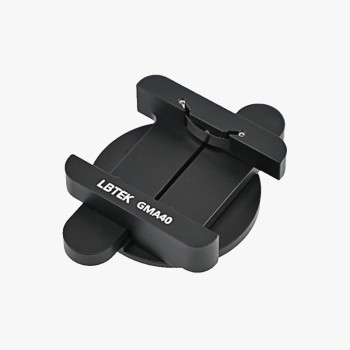

The LBTEK Grating Mount Adapter can be installed on Ø1 inch optical mounts, enabling pitch and yaw angle adjustment of the clamped grating. The adapter features a simple structure: by sliding the upper and lower pressing blocks, the screws on the back of the blocks move within machined slots, allowing adjustment of the height of the clamped grating or rectangular optic. Once positioned, the two rear M3 screws are tightened to secure the component. This adapter adopts a three-point fixed and adjustable mounting mechanism, consisting of two bottom contact lines and one top planar spring contact.
