| Code | 670212 | Type | Continuous Neutral Density Filters | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodized | |
| Compatible Optic Thickness | 2mm | Thread Specification | M6 and M4 | |
| Included Accessories | M6-to-M4 Thread Adapter | Included Wrenches | 1 × 2.0mm Hex Wrench 1 × 1.5mm Hex Wrench |
|
| Central Aperture Diameter | Ø7.5mm |
Main Thread
M6 threaded hole with M4 adapter
Compatible Filters
NDFR series filters with Ø7.5 mm central aperture
Compatible Optic Thickness
2 mm

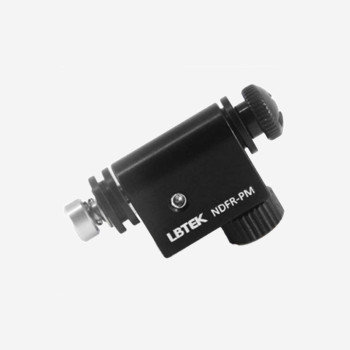

LBTEK Neutral Density Filter Mount allows Ø7.5 mm central aperture NDFR series filters to be mounted onto a rotation axis. When installing the filter, first use the included 1.5 mm hex wrench to tighten the side screw on the NDFR-PM to lock the rotation. Then use the included 2.0 mm hex wrench to remove the silver hex screw, insert the filter between the two spacers, and reassemble the wheel and screw set. Please ensure the flat washer and wave spring washer are placed back in their original order and tighten the bolt.
Included Tools
1 × 1.5 mm hex wrench
1 × 2.0 mm hex wrench
