| Code | 667351 | Type | Laser Beam Expander Adapter | |
| Thickness | 10mm | Material | 6061-T6 aluminum alloy | |
| Surface treatment | Black anodizing | Overall dimensions | 53mm × 44mm | |
| Inner diameter size | Ø37.7mm | Optical axis center height | 26mm | |
| Locking screw type | M4 hex socket cap screw | Bottom threaded hole specification | M4 |
Used to mount LZBE series variable magnification laser beam expanders
Smooth edges, space-saving
Bottom M4 threaded hole for optical rod connection

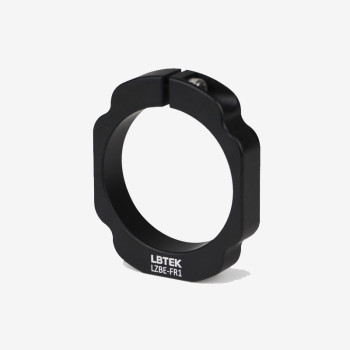

The LBTEK Laser Beam Expander Mount is specifically designed for LZBE series variable magnification laser beam expanders, allowing them to be securely fixed onto breadboards or optical platforms. Installing the beam expanders in this series requires passing through the inner ring of the mount, with top lateral locking screws that allow elastic deformation of the mount to secure the component without damaging the sleeve due to long screws. The bottom of the mount has an M4 threaded mounting hole, which can be supported by Ø12.7 mm stainless steel optical rods or other connectors. A 3.0 mm hex wrench is included for tightening.
