| Code | 666774 | Type | Auto-Collimator | |
| Resolution | 0.005″ | Maximum Measurement Distance | ≥2000mm | |
| Measurement Range | 800″ × 800″ | Objective Lens Focal Length | 1000mm | |
| Two-Axis Adjustable Holder Adjustment Range | Autocollimator Target Prism | Light Source Type | High-Performance LED (Wavelength 630 nm) | |
| Accuracy | ±0.04″ (within central field of 40″); ±0.15″ (within central field of 300″); ±0.20″ (full field) | Clear Aperture | 45mm | |
| Repeatability |
Better than the measurement accuracy under relatively stable environmental conditions |
Traders City price 0.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Ultra-High Precision
Integrated Optical System Design
Large Aperture

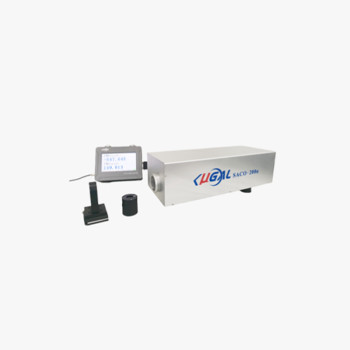

This series of high-precision optoelectronic autocollimators is suitable for ultra-high precision angular measurements. It features a stable, integrated optical system design with built-in high-performance image sensors and high-precision sub-pixel image positioning technology, making it ideal for ultra-high precision angular measurements in universities, research institutes, and metrology laboratories.
