| Code | 666773 | Type | SACO-f400PRO Auto-Collimator | |
| Resolution | 0.008″ | Maximum Measurement Distance | ≥3000mm | |
| Measurement Range | 4000″ × 4000″ | Objective Lens Focal Length | 400mm | |
| Two-Axis Adjustable Holder Adjustment Range | Vertical: 4°; Horizontal: 1.5°; Adjustment Resolution: 1° | Light Source Type | High-Performance LED (Wavelength 630 nm) | |
| Accuracy | ±0.05″ (within 10″ of the central field of view); ±0.10″ (within 20″ of the central field of view); ±0.30″ (full field of view) | Clear Aperture | 45mm | |
| Repeatability |
Better than the measurement accuracy under relatively stable environmental conditions |
Traders City price 0.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Large Measurement Range
Optional Accuracy
Large Aperture
Long Testing Distance

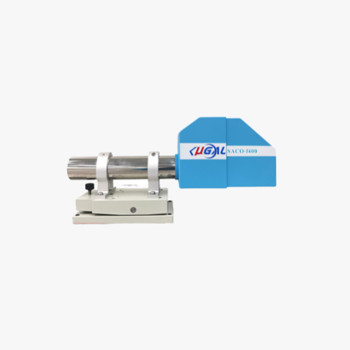

The SACO-f400PRO Auto-Collimator is a versatile instrument featuring high precision and a wide measurement range. It can be applied to instrument calibration, precision machinery installation and alignment, and surface profile measurement of optical products. It is suitable for both research applications and industrial production.
