| Code | 664160 | Type | Right-Angle Adapter Plate |
|
| Overall Dimensions | 65.0 × 86.0 × 30.0mm | Material | 6061-T6 Aluminum Alloy | |
| Mounting Hole | 9 M6 Threaded Holes, 2 M6 Countersunk Holes, 4 M4 Threaded Holes | Perpendicularity of the Mounting Surface | 0.04mm |
|
| Surface Treatment |
Black Anodizing |
Included Screws |
Two M6 Cylinder Head Hexagon Socket Screws |
Traders City price 56.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Main Material: 6061-T6 Aluminum Alloy
Surface Treatment: Black Anodizing
9 M6 Threaded Holes, 4 M4 Threaded Holes

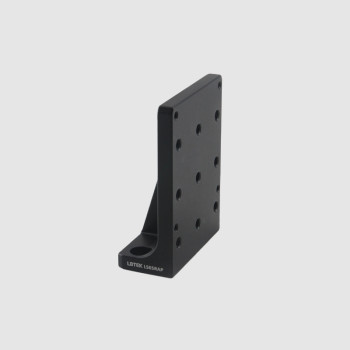

The right-angle adapter plate provided by LBTEK is made of high-precision, rigid 6061-T6 aluminum alloy. It features M6 countersunk slots, M4 threaded holes, and M6 threaded holes for fixing and adapting mechanical components. It can be used in conjunction with LBTEK's LS65-13×× series linear stages. When purchasing the LBTEK LS65RAP right-angle adapter plate, two M6 cylinder head hexagon socket screws are included.
