| Code | 663893 | Type | 1.4-inch Platform Manual Rotation Stage | |
| Graduation Resolution | 2° | Platform Size | 35.5mm | |
| Rotation Angle | 360° Continuous | Platform Mounting Holes | M4 (1 Hole), M3 (4 Holes), M3 Countersunk Holes (4 Holes) | |
| Mounting Platform Height | 13mm | Differential Graduation Accuracy | 10′ | |
| Parallelism | ＜ 0.03mm | Base Mounting Holes | M3 Countersunk Screw Holes (4 holes) | |
| Material | 6061-T6 Aluminum Alloy | Face Runout | ＜ 0.05mm | |
| Surface Treatment | Black Anodizing after Polishing |
360° continuous rotation
2° graduation accuracy on the side of the rotation disk, with 10′ differential scale resolution
Platform threaded holes: M4 (1), M3 (4), M3 countersunk holes (4)
Four M3 through holes for mounting onto an optical table or breadboard

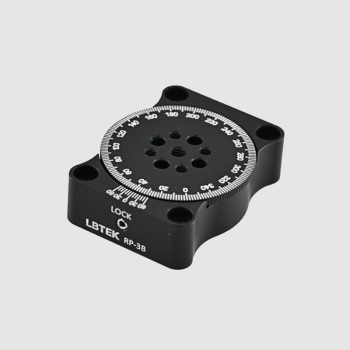

The LBTEK RP-3B manual mini rotation stage features a Ø1.4-inch rotating platform capable of 360° continuous rotation. The outer edge of the rotating platform is marked with 2° graduation intervals and includes a differential scale with 10′ resolution. A side-positioned thumb screw is used for locking.The top surface of the rotation platform includes four M3 threaded holes and one M4 threaded hole, along with four M3 countersunk holes. The base also has four M3 countersunk holes, allowing compatibility with miniature dovetail translation stages. Additionally, a side-mounted M3 hole is provided for vertical installation of the stage.
