| Code | 663721 | Type | Fiber Optic Interconnection Tools | |
| Slot | 2.2mm | Storage Temperature | -25 ℃~+85 ℃ |
| Interchangeability | ≤0.2 dB | Insertion Loss | ≤0.2 dB | |
| Mating Cycles | ≥1000/≥500 | Repeatability | ≤0.1 dB | |
| Operating Temp | -25 °C ~ +70 °C |
Compatible with Various Connectors
High Temperature Stability
Includes Dust Caps

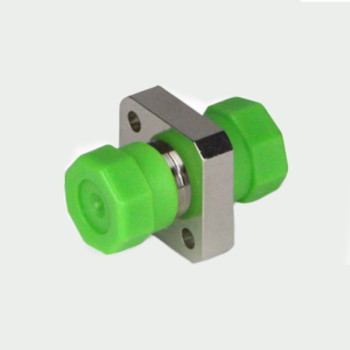

Fiber optic connections are made using adapters that contain internal sleeves to align the fibers precisely. To enable secure panel mounting, LBTEK has designed a variety of precision mounting flanges. We offer a range of high-performance adapters in different shapes that can accommodate industry-standard connectors, ensuring accurate alignment of fiber cores for low back reflection through direct physical contact.
Each LBTEK fiber optic adapter comes with protective caps on both ends to prevent contamination from dust or foreign particles. (It is recommended to cover the adapter with the dust cap after use for optimal protection.) Customers can select the appropriate mating sleeve according to the connector type to ensure proper compatibility.
