Model: 1358_27x10_6.35_N
Brand: Gitterwerk
Lead Time: In stock
Shipping Fee: 0.00
| Coad | 667658 | Length | 29.00mm | |

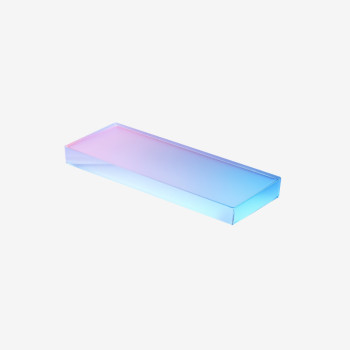

| Type | 450-980nm Projection Grating | Width | 12.00mm | |
| Dimension(mm) | 29.0 x 12.0 x 6.35 | Height | 6.35mm | |
| Wavelength(nm) | 975 | Period | 625nm | |
| Groove Density (l/mm) | 1600 | Clear Aperture | 27.0mm x 10.0mm | |
| Diffraction Efficiency (%) | ≥97.5 | Polarization | TE(s-pol) |
