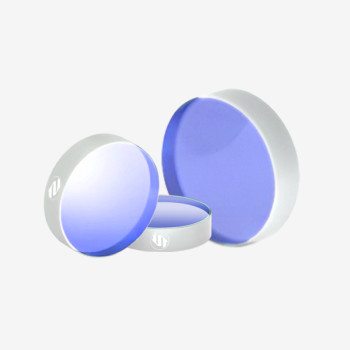

| Coad | 671669 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 38.10 | Thickness(mm) | 12.70 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1030 + 630 - 660 | AOI(°) | 0 | |
| Substrate | UVFS C7980 0F | Clear Aperture | 25mm | |
| Parallelism | <2 arcmin | Surface Quality S1 | 10-5@15mm central aperture + 20-10@25mm central aperture | |
| Surface Quality S2 | Polished (<60-40 S-D) | Surface Flatness | <λ/4@633nm | |
| GDD | - | Laser Damage Threshold | 4MW/cm²@1030nm,CW;10J/cm²@1030nm,10ns | |

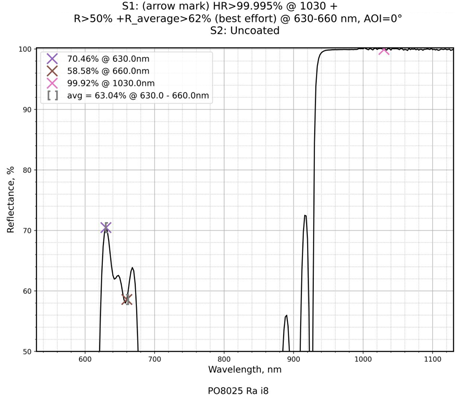

| Coating Type | IBS | Coating Specifications | S1:HR>99.995%@1030+R>50%+R_average>62%(best effort)@630-660nm / S2:Uncoated |
Traders City price 3530.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
