| Coad | 672046 | Type | CCD Cameras | |
| Dimension | 1630 x 1180 x 1140mm | CCD Format | 1340 x 100px |
| Pixel Size | 20.0 x 20.0μm | Image Area | 26.8 x 2.0mm | |
| Pixel Fill Factor | 100 | Dark current@-75°C (e-/p/sec) | 0.001(typical) |
| Deepest Cooling Temperature | -80°C guaranteed | Thermostating Precision | ±0.05°C | |
| Vertical Shift Speed | <15 μsec/row (programmable) | ADC Speed/Bits | 100kHz/16-bit and 2MHz/16-bit |
| Non-linearity | <1%@100kHz | Data Interface | USB2.0 | |
| Certification | CE | Weight | 2.27kg (5lbs) |
| Optical Mount | Princeton Instruments Acton spectrometer adapter with optional shutter | Cooling Method | Thermoelectric air or liquid cooling; CoolCUBE ll, a compact room temperature coolant circulator, isavailable for vibration sensitive environments | |
| Spectrometric Well Capacity（High Sensitivity） | 250 ke- (typical), 150 ke- (min) | Spectrometric Well Capacity（High Capacity） | 750ke- (typical), 600ke- (min) |
| System Read Noise@100 kHz | Front-illuminated:2.5 e- rms (typical), 4 e- rms (max) / Back-illuminated:3 e- rms (typical), 5 e- rms (max) | System Read Noise @2 MHz | Front-illuminated:10 e- rms (typical), 15 e- rms (max) / Back-illuminated:11 e- rms (typical), 16 e- rms (max) | |
| Software Selectable Gains | 1, 2, 4 e- (high sensitivity); 4, 8, 16 e- (high capacity); available at all speeds | Operating Systems Supported | Windows 8/7/XP (32-bit), Windows 8/7 (64-bit) and Linux |
| I/O Signals | Two MCX to BNC connectors for programmable frame readout, shutter, trigger in | Operating Environment | +5 to +30°C, non-condensing atmosphere | |
| Features | Back-illuminated CCD with eXcelon technology. Enhanced sensitivity in the UV and the NIR with low etaloning. |

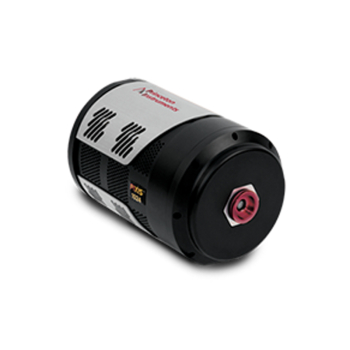

The PlXlS series from Princeton lnstruments (Pl) are fully integrated, low noise cameras with a 1340 pixel format designed for quantitative scientifc optical spectroscopy applications. Based on Pl's exclusive XP cooling technology, PlXlS cameras offer thermoelectric cooling down to -80'c, with an all-metal, hermetically sealed design and the industry's only lifetime vacuum guarantee. High QE and ultra low-noise electronics make the PlXlS series of cameras ideal for demanding, low light applications such as Raman spectroscopy, photo- and electroluminescence, fuorescence and refectance spectroscopy. Princeton Instruments’ exclusive eXcelon" technology delivers the highest sensitivity available from the deep UV to the NlR，while suppressing the etaloning that occurs in conventional back-thinned devices. Dual speed operation at 1 00 kHz or 2 MHz enables these cameras to be used for either long acquisitions or fast kinetic studies.
