| Coad | 671742 | Type | Ti:Sapphire Crystal | |
| Dimension(mm) | 3.0 x 3.0 x 15.0 | Thickness | 15.0mm | |

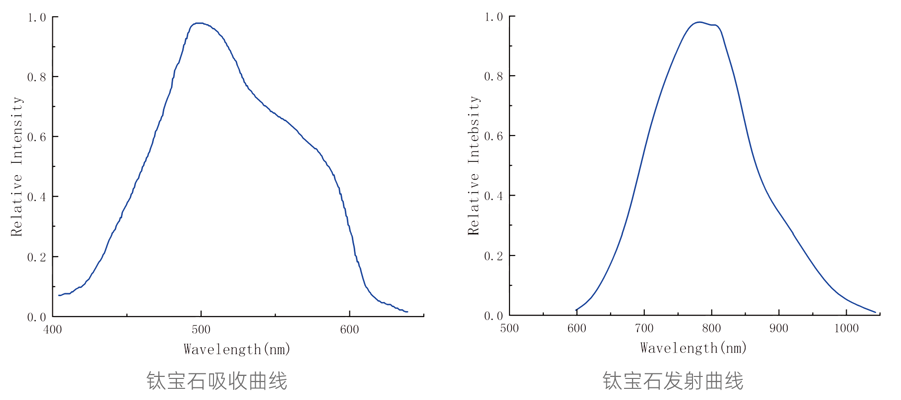

| Absorption Wavelength (nm) | 527 - 532 | Emission Wavelength (nm) | 700 - 900 | |
| Absorption Band | 400 - 600nm | Emission Band | 650 - 1100nm | |
| Peak Absorption Wavelength | 488nm | Peak Emission Wavelength | 780nm | |
| Absorption Coefficient (cm⁻¹) | 1.89 | Absorption Efficiency | 95%@532nm | |
| Clear Aperture | 3.0mm x 3.0mm | Upper-State Lifetime | 3.2μs | |
| Cutting Orientation | a-cut | Figure of Merit (FOM) | ＞150 | |
| Laser Damage Threshold | 10J/cm2@1064nm,10ns | Coating Specifications | Brewster Angle，Double-Sided Polished |
Traders City price 1633.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
