| Coad | 671708 | Type | Harmonic Beam Splitter | |
| Dimension(mm) | 50.8 x 3.0 | AOI(°) | 45 | |
| Diameter | 50.8mm +0/-0.1mm | Thickness | 3.0mm +0/-0.1mm | |
| HR Wavelength (nm) | 515 | HT Wavelength (nm) | 1030 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | 45mm | |
| Parallelism | <30 arcsec | Protective Chamfer | 0.2-0.5mm x 45° | |
| Surface Quality S1 | MIL 20/10 S/D | Surface Quality S2 | MIL 20/10 S/D | |
| Surface Flatness | <λ/8@633nm over any 12mm dia within CA | Coating Type | IBS | |
| Reflectivity | >99.9% | Transmittance | >99.4% | |

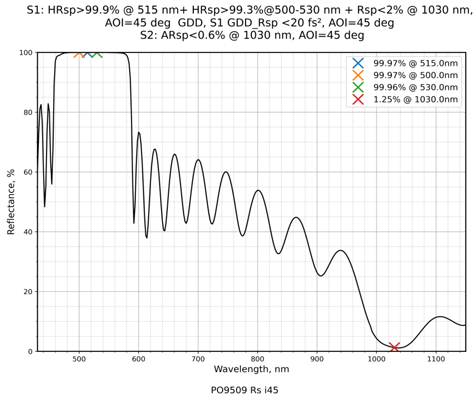

| Coating Parameter S1 | HRsp>99.9%@515nm+HRsp>99.3%@500-530nm+Rsp<2%@1030nm | Coating Parameter S2 | ARsp<0.6%@1030nm |
Traders City price 1009.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
