| Coad | 671706 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 25.4 x 6.35 | AOI(°) | 0 | |
| Diameter | 25.4mm +0/-0.1mm | Thickness | 6.35mm +0/-0.1mm | |
| HR Wavelength (nm) | 532 | HT Wavelength (nm) | 1064 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | 22.86mm | |
| Parallelism | 10 arcsec | Protective Chamfer | 0.2-0.4mm x 45° | |
| Surface Quality S1 | MIL 20/10 S/D | Surface Quality S2 | MIL 20/10 S/D | |
| Surface Flatness | <λ/10@633nm over any 15mm dia within CA | Coating Type | IBS | |
| Reflectivity | >99.7% | Transmittance | >99% | |

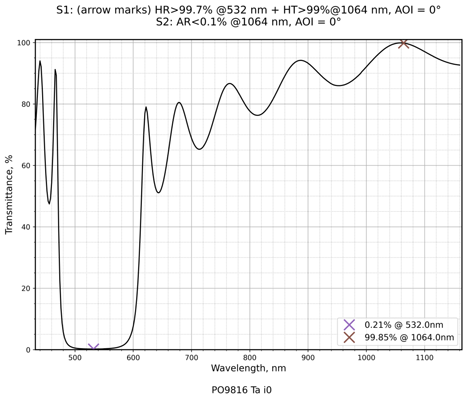

| Coating Parameter S1 | HR>99.7%@532nm+HT>99%@1064nm | Coating Parameter S2 | AR<0.1%@1064nm |
Traders City price 151.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
