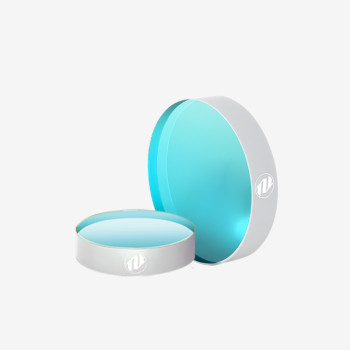

| Coad | 671704 | Type | 1064nm Plate Beamsplitter | |
| Dimension(mm) | 25.4 x 6.35 | Wavelength(nm) | 1064 + 532 | |
| Diameter | 25.4mm +0/-0.1mm | Thickness | 6.35mm +0/-0.1mm | |
| T/R Ratio | 95:5 | AOI(°) | 45 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥20mm | |
| Parallelism | 10 arcsec | Surface Quality S1 | MIL 20/10 S/D | |
| Surface Quality S2 | MIL 20/10 S/D | Surface Flatness | <λ/6@633nm over any 10mm dia within CA | |
| GDD | - | Laser Damage Threshold | - | |

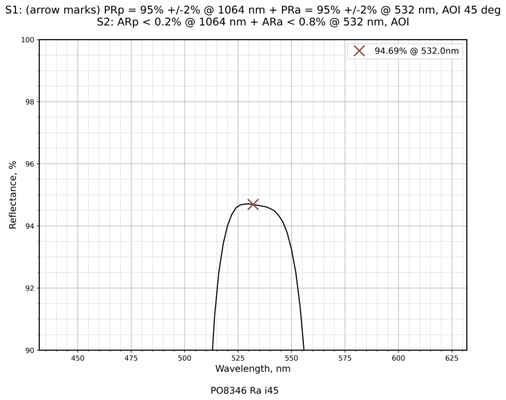

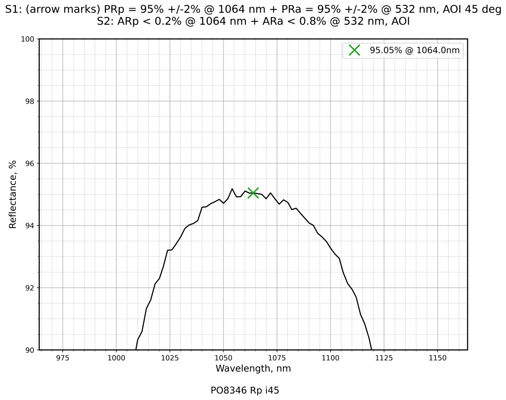

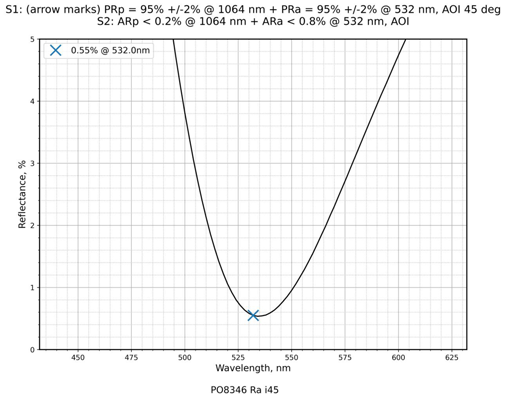

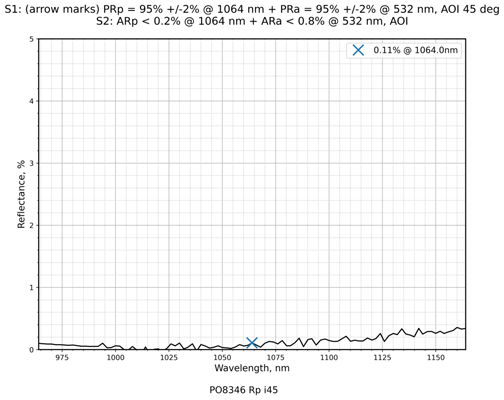

| Coating Type | IBS | Coating Specifications | S1:PRp=95%+ / -2%@1064nm+PRa=95%+ / -2%@532nm / S2:ARp<0.2%@1064nm+ARa<0.8%@532nm |
Traders City price 576.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
