| Coad | 671681 | Substrate | UVFS JGS1 | |
| Type | Plano-Concave Mirror | Clear Aperture | ≥10mm | |
| Dimension(mm) | 12.7 x 6.35 | Parallelism | <3 arcmin | |
| Diameter | 12.7mm +0/-0.1mm | Center Thickness | - | |
| Edge Thickness | 6.35mm +0/-0.1mm | Surface Quality S1 | 20-10 S-D MIL-PRF-13830B over CA | |
| Wavelength(nm) | 1010 - 1060 | Surface Quality S2 | Commercial polish | |
| Radius of Curvature(mm) | -1500 | Surface Irregularity | <λ/8@633nm per CA | |
| AOI(°) | 0 | Coating Type | IBS | |

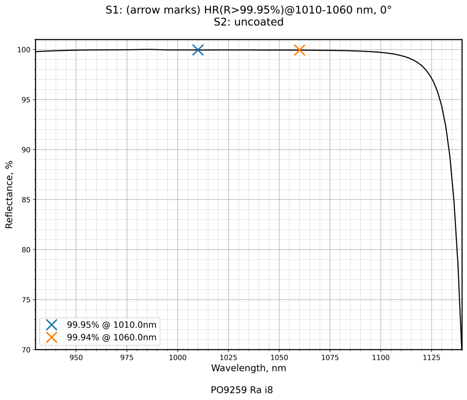

| Focal Length | - | Coating Specifications | S1:HR>99.95%@1010-1060nm / S2:Uncoated |
Traders City price 158.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
