| Coad | 671680 | Substrate | UVFS JGS1 | |

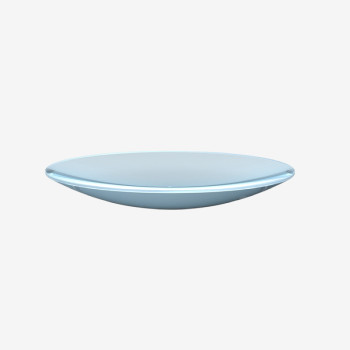

| Type | Plano-Concave Mirror | Clear Aperture | ≥61mm | |
| Dimension(mm) | 76.2 x 12.7 | Parallelism | <3 arcmin | |
| Diameter | 76.2mm +0/-0.1mm | Center Thickness | - | |
| Edge Thickness | 12.7mm +0/-0.1mm | Surface Quality S1 | MIL 20/10 S/D | |
| Wavelength(nm) | 925 - 1170 | Surface Quality S2 | - | |
| Radius of Curvature(mm) | -300 | Surface Irregularity | <λ/10@633nm per CA | |
| AOI(°) | 0 | Coating Type | IBS | |

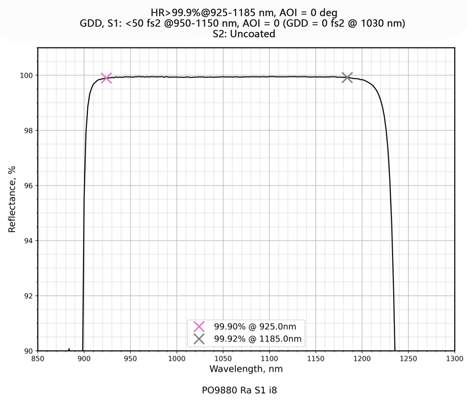

| Focal Length | - | Coating Specifications | S1:HR>99.9%@925-1170nm / S2:Uncoated |
Traders City price 2305.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
