| Coad | 671677 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 3.10 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1064+532+635-650 | AOI(°) | 45 | |
| Substrate | UVFS JGS1 | Clear Aperture | >22mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D | |
| Surface Quality S2 | Commercially polished | Surface Flatness | <λ@633nm over 20mm | |
| GDD | - | Laser Damage Threshold | - | |

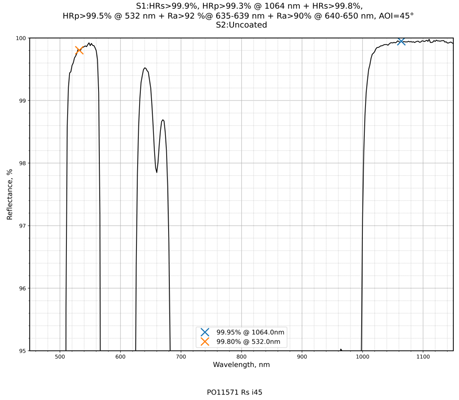

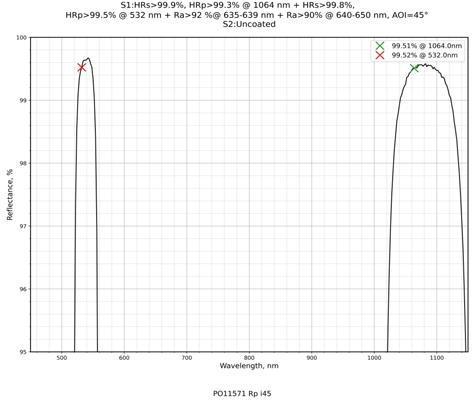

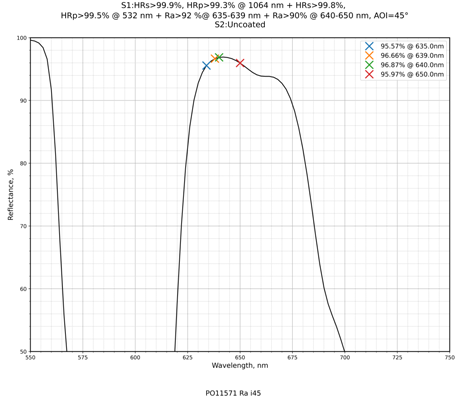

| Coating Type | IBS | Coating Specifications | S1:HRs>99.9%, HRp>99.3%@1064nm+HRs>99.8%,HRp>99.5%@532nm+Ra>92%@635-639nm+Ra>90%@640-650nm / S2:Uncoated |
Traders City price 216.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
