| Coad | 671676 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 12.70 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 400 + 800 | AOI(°) | 45 | |
| Substrate | UVFS C7980 0F | Clear Aperture | ≥11mm | |
| Parallelism | <3 arcmin | Surface Quality S1 | 10-5 S-D over CA (MIL-PRF-13830B) | |
| Surface Quality S2 | Inspection polished (80-50 SD) | Surface Flatness | <λ/6@633nm over 10mm aperture within CA. | |
| GDD | |GDD(Rs)|<35fs^2@385-415nm |GDD(Rp)|<50fs^2@395-415nm |GDD(Rs)|<20fs^2@770-830nm |GDD(Rp)|<40fs^2@770-810nm | Laser Damage Threshold | - | |

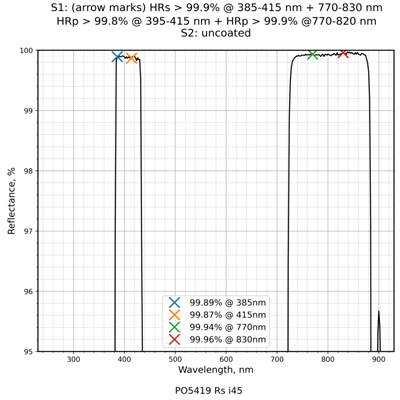

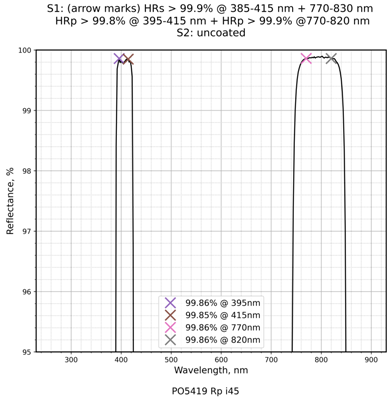

| Coating Type | IBS | Coating Specifications | S1:HRs>99.9%@385-415nm+770-830nm,HRp>99.8%@395-415nm+HRp>99.9%@770-820nm / S2:Uncoated |
Traders City price 173.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
