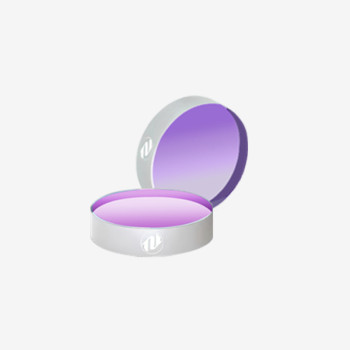

| Coad | 671672 | Type | Damage-Resistant Broadband Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1 mm | Thickness Tolerance | +0/-0.1 mm | |
| Wavelength(nm) | 890 - 1200 | AOI(°) | 0 | |
| Substrate | UVFS C7980 0F | Clear Aperture | >90% | |
| Parallelism | <10 arcmin | Surface Quality S1 | 20-10 S-D | |
| Surface Quality S2 | Commercial polished | Surface Flatness | λ/10@633nm over ~8mm aperture | |
| GDD | |GDD Rs|< 70 fs^2 | Laser Damage Threshold | - | |

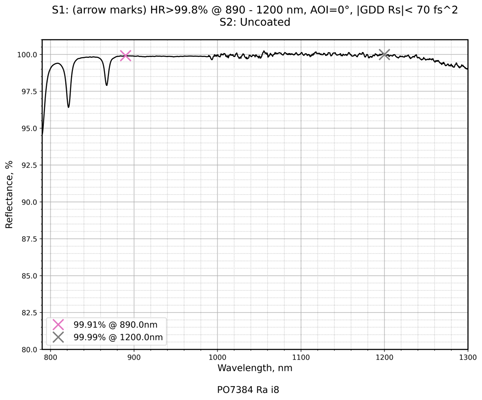

| Coating Type | IBS | Coating Specifications | S1:HR>99.8%@890-1200nm / S2:Uncoated |
Traders City price 288.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
