| Coad | 671671 | Type | Damage-Resistant Broadband Femtosecond Mirror | |
| Diameter(mm) | 12.70 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1 mm | Thickness Tolerance | +0/-0.1 mm | |
| Wavelength(nm) | 890 - 1200 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | >90% | |
| Parallelism | <10 arcmin | Surface Quality S1 | 20-10 S-D | |
| Surface Quality S2 | Commercial polished | Surface Flatness | λ/10@633nm over ~8mm aperture | |
| GDD | |GDD Rs|< 70 fs^2 | Laser Damage Threshold | - | |
| Coating Type | IBS | Coating Specifications | S1:HR>99.8%@890-1200nm / S2:Uncoated |
Traders City price 144.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller

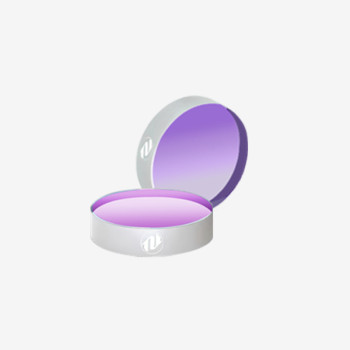

Damage-Resistant Broadband Mirror, with a flat reflective surface, is a mirror that can be used for various applications, including beam deflection, interferometric measurements, or as an optical component in imaging systems.
Using this type of mirror will address concerns such as whether it is suitable for different femtosecond laser systems, whether it will maintain the temporal characteristics of the laser beam, and whether it can handle high peak intensities.
Usage Instructions: If the mirror surface becomes dirty, gently wipe it with a lint-free lens cleaning tissue moistened with alcohol. Do not use rough fabrics or papers, or clean with water, as this could damage the surface.
