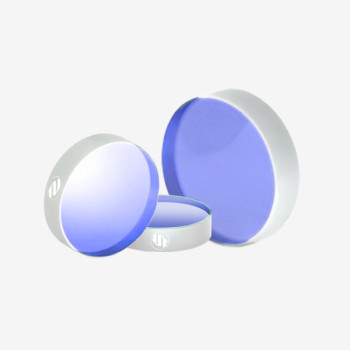

| Coad | 671665 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 193 + 635 | AOI(°) | 45 | |
| Substrate | UVFS C7980 0F | Clear Aperture | 22.86mm | |
| Parallelism | 10 arcsec | Surface Quality S1 | 40-20 S-D as per MIL-PRF-13830B | |
| Surface Quality S2 | 40-20 S-D as per MIL-PRF-13830B | Surface Flatness | <λ/10@633nm over any 10mm dia within CA | |
| GDD | - | Laser Damage Threshold | - | |

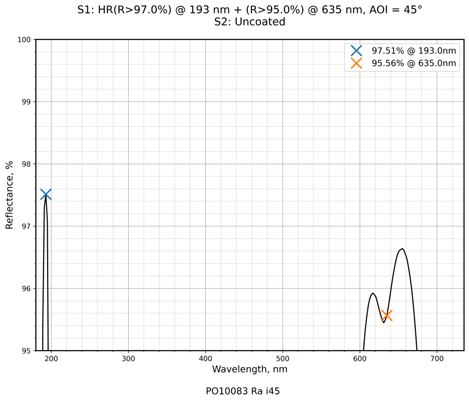

| Coating Type | IBS | Coating Specifications | S1:HR(R>97.0%)@193nm+(R>95.0%) @635nm / S2:Uncoated |
Traders City price 2118.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
