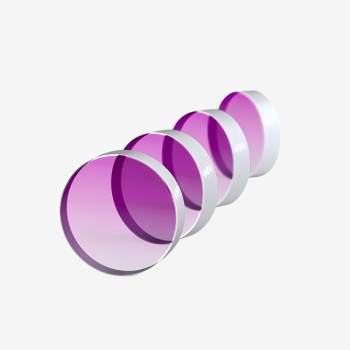

| Coad | 671657 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1020 - 1100 | AOI(°) | 0 - 22.5 | |
| Substrate | UVFS C7980 0F | Clear Aperture | ≥21mm | |
| Parallelism | 10 arcsec | Surface Quality S1 | 10-5 S-D as per MIL-PRF-13830B | |
| Surface Quality S2 | - | Surface Flatness | <λ/10@633nm over any 12mm dia within CA | |
| GDD | GDDrsp< 50 fs2 | Laser Damage Threshold | - | |

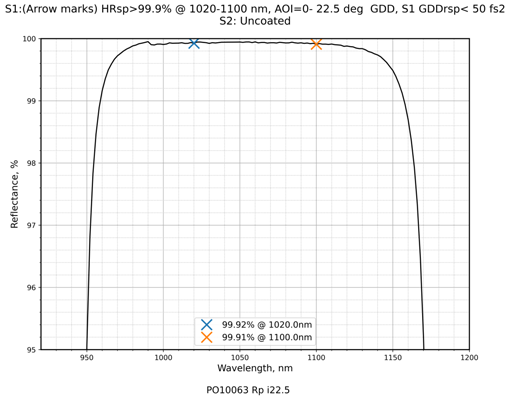

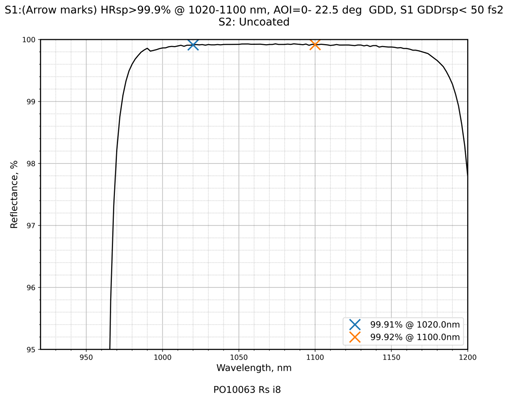

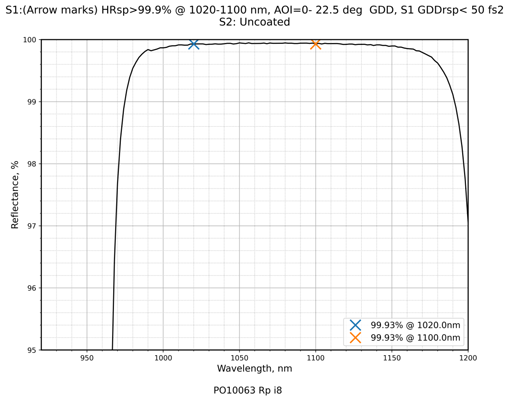

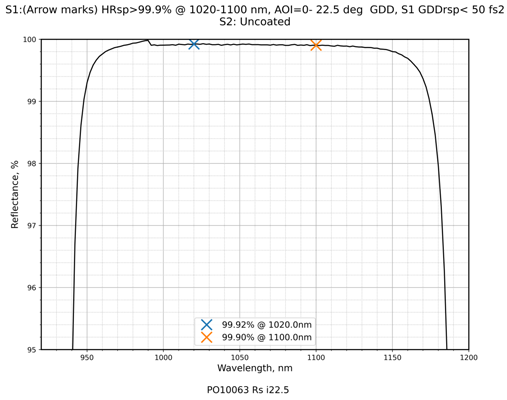

| Coating Type | IBS | Coating Specifications | S1:HRsp>99.9%@1020-1100nm / S2:Uncoated |
Traders City price 216.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
