| Coad | 671654 | Type | Damage-Resistant Ultraviolet Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 355 | AOI(°) | 45 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥20mm | |
| Parallelism | 10 arcsec | Surface Quality S1 | 20-10 S-D per CA as per MIL | |
| Surface Quality S2 | Commercially Polished | Surface Flatness | <λ/10@633nm over any 15mm aperture within CA | |
| GDD | - | Laser Damage Threshold | - | |

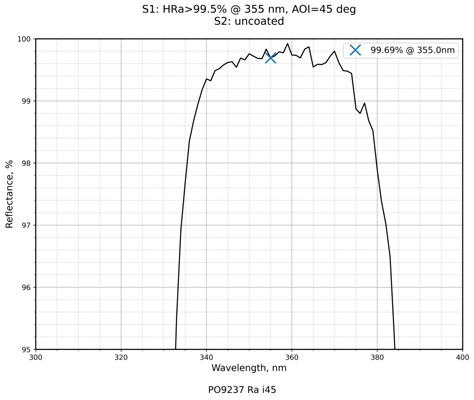

| Coating Type | IBS Coating | Coating Specifications | S1:HRs>99.7%+HRp>99.6%@355nm / S2:Uncoated |
Traders City price 173.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
