| Coad | 671653 | Type | Damage-Resistant Ultraviolet Mirror | |
| Diameter(mm) | 50.80 | Thickness(mm) | 9.52 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 343 - 355 | AOI(°) | 45 | |
| Substrate | UVFS JGS1 | Clear Aperture | ≥45mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | MIL 20-10 S-D as per MIL-PRF-13830B | |
| Surface Quality S2 | Commercial polish (80/50 S/D as per MIL-PRF-13830B) | Surface Flatness | <λ/10@633nm over any 30mm dia within CA | |
| GDD | - | Laser Damage Threshold | - | |

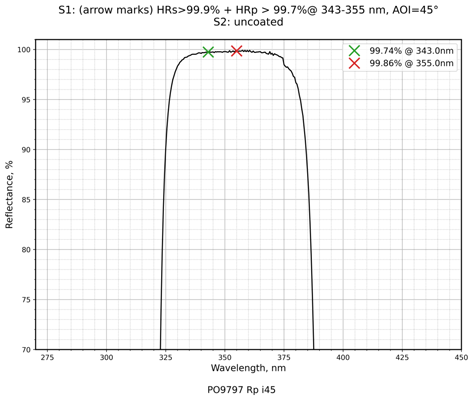

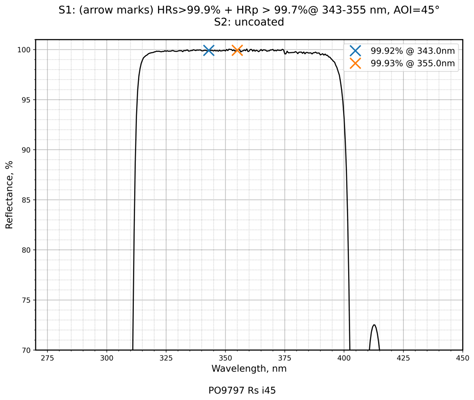

| Coating Type | IBS Coating | Coating Specifications | S1:HRs>99.9%+HRp>99.7%@343-355nm / S2:Uncoated |
Traders City price 475.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
