| Coad | 671652 | Type | Damage-Resistant Ultraviolet Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 343 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | ≥20mm | |
| Parallelism | <10 arcsec | Surface Quality S1 | 20-10 SD @ 20mm central aperture + 10-5 SD over 10 mm central aperture | |
| Surface Quality S2 | Commercially Polished | Surface Flatness | <λ/10@633nm over any 15mm dia within CA | |
| GDD | - | Laser Damage Threshold | - | |

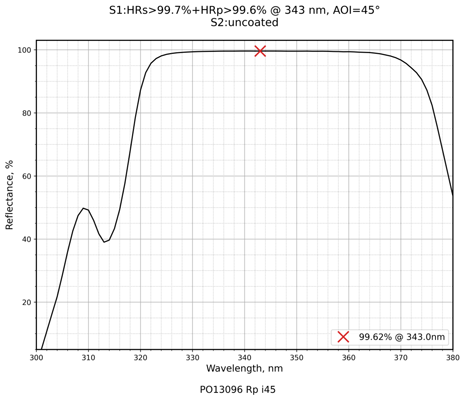

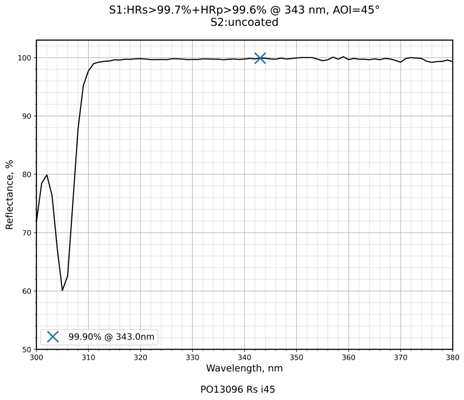

| Coating Type | IBS Coating | Coating Specifications | S1:HRs>99.7%+HRp>99.6%@343nm / S2:Uncoated |
Traders City price 223.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
