| Coad | 671650 | Type | Damage-Resistant Ultraviolet Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 3.00 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 193 | AOI(°) | 42 - 48 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥21mm | |
| Parallelism | <1 arcmin | Surface Quality S1 | 20-10 S-D as per MIL-PRF-13830B | |
| Surface Quality S2 | Polished | Surface Flatness | <λ/8@633nm over CA | |
| GDD | - | Laser Damage Threshold | - | |

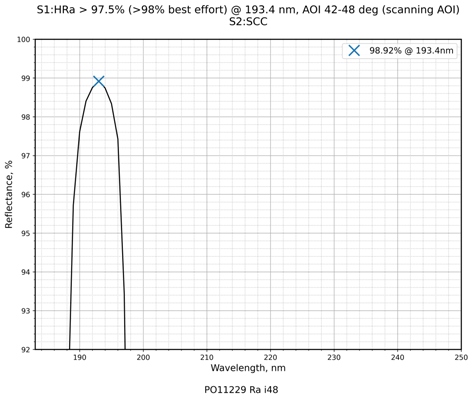

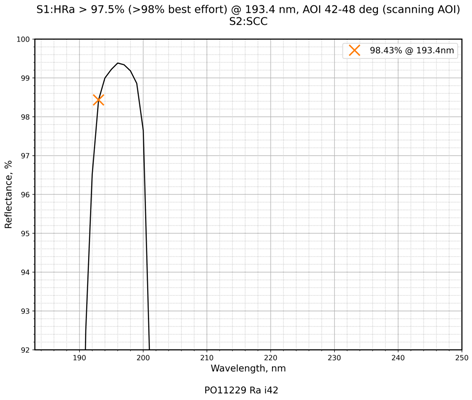

| Coating Type | IBS Coating | Coating Specifications | S1:HRa>97.5%(>98%besteffort)@193.4nm / S2:Uncoated |
Traders City price 202.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
