| Code | 671645 | Type | Pockels Cell | |
| Optical Material | Potassium Dideuterium Phosphate (KD*P) Crystal | Dimensions | Ø25.4mm × 39.0mm | |
| Clear Aperture | 10.0mm | Operating Wavelength | 1064nm | |
| AR Coating | Ravg < 0.3% @ 1064nm | Transmission | ≥ 98% @ 1064nm | |
| Housing Material |
Polyoxymethylene (POM) |
Damage Threshold | 10 J/cm² @ 1064nm, 10ns, 10Hz | |
| Humidity |
20% – 50%RH |
Storage Temperature |
0 – 40°C |
|
| Repetition Rate Range |
≤ 1kHz |
Quarter-Wave Voltage |
≤ 4kV |
|
| Capacitance |
≈ 6pF |
Static Extinction Ratio |
≥ 1000:1 |
|
| Dynamic Extinction Ratio |
≥ 1000:1 |
Connection Type |
PIN |

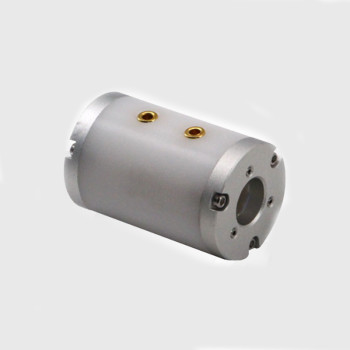

The LBTEK Pockels Cell offers high extinction ratio and high transmission, providing excellent electro-optic performance for laser modulation and pulse picking applications.
Optional Operating Wavelengths: 532 nm / 1064 nm
Extinction Ratio: ≥ 1000:1
Transmission: High transmittance @ design wavelength
Connection Interface: Dual pin holes for driver connection
Clear Aperture: 10 mm
The 10 mm clear-aperture model can be mounted using AMM-1B or AMC-1B holders with set screws, as well as the HM-V50 V-shaped mount. Other aperture sizes are also compatible with the HM-V50 mount.
Custom wavelengths, apertures, or adapter mounts can be provided upon request — please contact LBTEK Technical Support for tailored solutions.
