| Code | 671644 | Type | Pockels Cell | |
| Operating Temperature | 10°C – 35°C | Cooling Method | Conduction cooling | |
| Input Voltage | +24V DC, 1A | Maximum Repetition Rate | 1kHz | |
| Rise/Fall Time (10%–90%) | ≤ 12ns | Maximum Output Voltage | 5kV | |
| Capacitance |
≤ 10pF |
Trigger Level | +5V (50Ω) | |
| Output Pulse Waveform |
Square wave |
Output Pulse Width |
200ns – DC |
|
| Output Pulse Amplitude |
5kV (±2.5kV) |
Compatible Model |
EOML08-1064 |
Traders City price 1132.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller

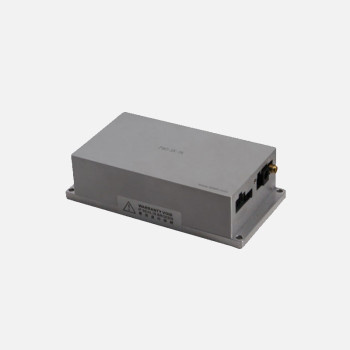

The LBTEK Pockels Cell Driver is a compact, high-performance driver designed specifically for Pockels cells. It integrates a high-voltage source and a high-voltage pulse modulator within a single unit, providing stable and reliable operation.
Adjustable Output Voltage
Maximum Output Voltage: 5 kV
Output Waveform: Square wave
Maximum Repetition Rate: 1 kHz
Control Modes: Standard control and analog voltage control
This driver is engineered for precise Pockels cell operation and can be tailored to meet specific experimental requirements. For detailed operation guidelines and customization support, please refer to the Pockels Cell Driver User Manual or contact LBTEK Technical Support.
