| Code | 671637 | Type | Scanning Fabry–Perot Interferometer | |
| High-Voltage Output Range | 1–60V | Low-Voltage Monitoring Output Range | 0.1–5V | |
| Sawtooth Scan Frequency Range | 1–100Hz (Sawtooth), 0.5–50 Hz (Triangle) | Frequency Zoom Levels | 11 Steps | |
| Transimpedance Amplifier Gain Levels | 4 Steps | TTL Trigger Output Adjustment Range | 1%–99% | |
| Power Supply |
DC 220V |
Dimensions | 200 × 200 × 114.2mm |
High-Voltage Output: 1–60 V Scan Waveforms: Triangle / Sawtooth Control Interface: LCD Touchscreen

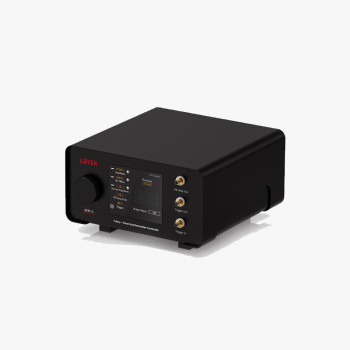

The LBTEK SFPI-C Fabry–Perot Interferometer Driver generates precision voltage signals to drive piezoelectric transducers (PZTs), enabling accurate control of the mirror spacing within a confocal Fabry–Perot (F-P) cavity.
The front-panel LCD touchscreen allows intuitive adjustment of output parameters. Its frequency zoom function provides 11 selectable scaling levels (1×, 2×, 4×, etc.), enabling users to fine-tune the scanning frequency for enhanced spectral resolution.
The driver also includes a TTL trigger output, supporting external oscilloscope synchronization, and a 4-level adjustable high-precision photodetector amplifier circuit for monitoring the cavity transmission signal in real time.
