| Code | 671626 | Type | Solid Analysis System | |
| Clamping Diameter | ≤6.35mm | Platform Diameter | Ø150mm | |
| Maximum Clamping Height | 85mm | Sampling Area Diameter | Ø100mm | |
| Platform Material | Aluminum Alloy | Holder Material | Stainless Steel |
Sampling Area Diameter: 100 mm Maximum Probe Clamping Diameter: 6.35 mm Adjustable Sampling Height: Up to 85 mm above the base platform

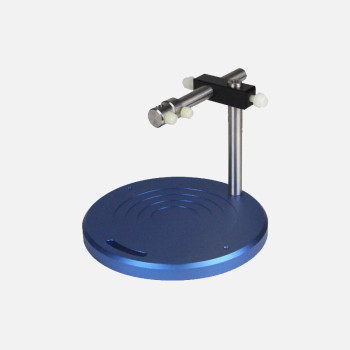

The LBTEK Reflection Measurement Holder offers a stable and flexible structure that allows multi-directional adjustment of fiber incident and collection angles, making it ideal for non-fixed-angle reflectance measurements.
The base platform has a diameter of 150 mm with a 100 mm sampling area, featuring multiple concentric circles for easy sample positioning. The upper clamp can securely hold fiber probes or optical sampling devices up to Ø6.35 mm, fixed by an M4 thumb screw on the side. The stainless-steel vertical rod enables smooth height adjustment up to 85 mm above the base, lockable via an M6 thumb screw.
The LBTEK Reflection Measurement Holder is suitable for reflectance testing of solid and powder samples, as well as for mounting fiber probes and light sources, providing exceptional versatility and stability in optical measurement setups.
