| Code | 671623 | Type | Liquid Analysis System | |
| Operating Wavelength | 185–2500nm | Connector Type | SMA905 | |
| Collimating Lenses | Ø5mm Quartz Lenses ×2 | Compatible Fibers | Incident Fiber ≤200μm, Receiving Fiber ≥200μm | |
| Optical Path Length | 300mm | Operating Temperature | –10°C to +150°C (Non-Condensing) | |
| Pressure Resistance |
0.5kg/cm² |
Cell Volume |
94cm³ |
|
| Housing Material |
Brass |
Gas Port Inner Diameter |
3mm |
|
| Gas Port Outer Diameter |
5mm |
Weight |
3.4kg |
|
| Dimensions (L×W×H) |
40 × 40 × 310mm |
Operating Wavelength: 185–2500 nm Equipped with two Ø5 mm fiber collimation lenses Connector Type: SMA905 Optical Path Length: 300 mm

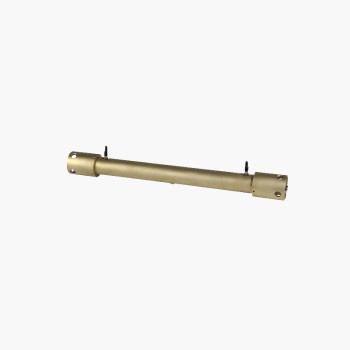

The LBTEK Flue Gas Analysis Cell is designed for environmental protection and industrial online gas analysis applications. When paired with an LBTEK fiber-optic spectrometer, it forms a compact gas analyzer capable of measuring concentrations of gases such as SO₂, NO, NO₂, O₂, NH₃, Cl₂, O₃, and H₂S.
Constructed from brass, the cell maintains excellent stability even under elevated temperatures, making it ideal for high-temperature flue gas monitoring. Both ends are equipped with LB74UV fiber collimation lenses featuring standard SMA905 interfaces, allowing direct coupling to the light source and detector.
Two gas inlet/outlet ports are positioned at the top ends of the cell (non-directional). The port inner and outer diameters are 3 mm and 5 mm, respectively, and are compatible with PTFE tubing (ID 4 mm / OD 5 mm). For maintenance, if liquid enters the chamber during operation, the bottom drain plug can be loosened to discharge residuals after testing.
