| Code | 671612 | Type | Spectral Analyzer | |
| Wavelength Range | 600–1700nm | Spectral Resolution | 0.04nm @ 1550nm | |
| Wavelength Repeatability | ±0.005nm | Wavelength Accuracy | ±0.1nm | |
| Power Range | –75dBm to +20dBm | Power Accuracy | ±0.5dB @ 1550nm, –10dBm | |
| Scan Speed | ≥60nm/s | Input Fiber | SMF (9.5/125µm) | |
| Display | 1280 × 800mm | Interfaces | USB ×2, LAN, HDMI | |
| Dimensions | 94.2 × 211 × 292mm | Weight | 3.5kg | |
| Operating Temperature | –10 to +50°C | Storage Temperature | –20 to +60°C | |
| Power Supply | 100–240VAC, 50–60Hz, 1.4A |
Traders City price 0.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller

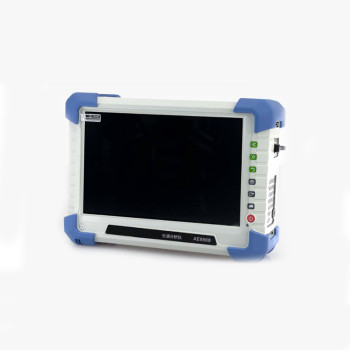

AE8560 Portable Spectrometer
Input Fiber: SMF (9.5/125 µm) Wavelength Range: 600–1700 nm Resolution Bandwidth: 0.04 nm @ 1550 nm
The LBTEK AE8560 Portable Spectrometer features a wavelength response range of 600–1700 nm and supports single-mode fiber input. With a dynamic range up to 60 dB, it effectively resolves closely spaced spectral signals. The AE8560 provides comprehensive measurement functions, suitable for spectral characterization of semiconductor lasers (DFB, FP), WDM system testing, EDFA parameter analysis, transmission measurements, and drift tests. Equipped with a 10.1-inch large touchscreen, it ensures intuitive field operation and clear display of detailed waveforms and measurement results.
