| Coad | 671608 | Type | High-resolution Fiber-optic Spectrometer | |
| Dimension(mm) | 157.0 x 115.0 x 41.5 | Wavelength(nm) | 400 - 600 | |
| Spectral Resolution (nm) | 0.24 | Signal-to-Noise Ratio | >300:1 | |
| CCD Pixel Number | 3648 × 1 pixels | A/D | 16bit | |
| Focal Length | 100mm | Power Consumption | 200mA 5V | |
| Optical Design | F/4.5, symmetrical crossed Czerny–Turner optical design | Fiber Interface | SMA905 | |
| Slit Width | - | Grating | - | |
| Dynamic Range | >2000:1 | External Trigger Transfer Time | <4ms | |
| Detector Type | Toshiba | Stray Light | <0.1% | |
| Data Acquisition Speed | - | Central Wavelength Stability | - | |
| Integration Time | 4.0ms-60.0s | Linearity Correction | >99% | |
| Color Coordinate Stability | - | Weight | 0.84kg | |
| High-Order Spectrum Suppression | High-order diffraction suppression filter | |||

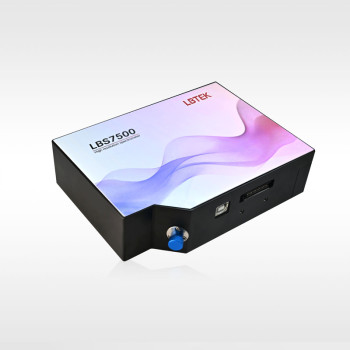

The LBS7500 high-resolution spectrometer developed by LBTEK is equipped with a high line-density grating, delivering superior spectral resolution. It features a deep-UV-sensitive CCD detector with special UV enhancement treatment, extending the spectral detection range into the deep ultraviolet region. The LBS7500 fiber-optic spectrometer combines high resolution, broad wavelength coverage, and multi-channel compatibility, providing high-quality spectral measurements for applications such as laser characterization, gas absorption analysis, and plasma diagnostics.
The LBS7500 Series Fiber-optic Spectrometers are built on a high-resolution optical platform, specifically designed for applications requiring fine spectral resolution. The series includes five models — LBS7500-A, LBS7500-B, LBS7500-C, LBS7500-D, and LBS7500-E — each covering a different wavelength detection range. All five spectrometers can be simultaneously connected and controlled via software, enabling spectral stitching across multiple wavelength bands. This design meets the needs of users requiring broadband, high-resolution spectral measurements for advanced research and industrial applications.
