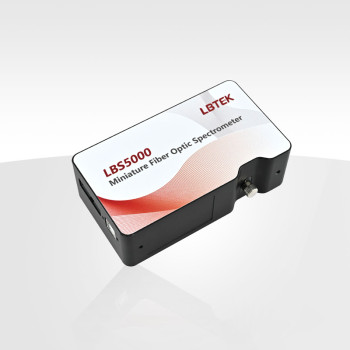

| Coad | 671604 | Type | High-stability Fiber-optic Spectrometer | |
| Dimension(mm) | 125.0 x 70.0 x 40.0 | Wavelength(nm) | 350 - 1100 | |
| Spectral Resolution (nm) | 2.5 | Signal-to-Noise Ratio | 400:1 | |
| CCD Pixel Number | 1×2048 | A/D | 16bit | |
| Focal Length | 70mm（Input） / 90mm（Output） | Power Consumption | DC 5 V/300 mA | |
| Optical Design | F/4, Czerny–Turner optical design | Fiber Interface | SMA905 | |
| Slit Width | 50μm | Grating | - | |
| Dynamic Range | 4000:1 | External Trigger Transfer Time | 2.8ms | |
| Detector Type | Hamamatsu linear array CMOS | Stray Light | ＜0.1%@435nm | |
| Data Acquisition Speed | - | Central Wavelength Stability | ±0.1nm | |
| Integration Time | 0.1ms-10.0s | Linearity Correction | >99.8% | |
| Color Coordinate Stability | ±0.0002 | Weight | 560g | |
| High-Order Spectrum Suppression | High-order diffraction suppression filter | |||
Traders City price 2179.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
