| Coad | 671602 | Type | High-speed Fiber-optic Spectrometer | |
| Dimension(mm) | 100.0 x 90.0 x 54.8 | Wavelength(nm) | 350 - 1000 | |
| Spectral Resolution (nm) | <1.0 | Signal-to-Noise Ratio | 700:1 | |
| CCD Pixel Number | 1×2048 | A/D | 16bit | |
| Focal Length | 58mm（Input） / 63.5mm（Output） | Power Consumption | DC 5V/400 mA | |
| Optical Design | Czerny–Turner optical design | Fiber Interface | SMA905 | |
| Slit Width | 25μm | Grating | 600 lines/mm, 500nm standard configuration | |
| Dynamic Range | 4000:1 | External Trigger Transfer Time | - | |
| Detector Type | Hamamatsu linear array CMOS | Stray Light | <0.05%@632.8nm | |
| Data Acquisition Speed | 1000 Frames/s | Central Wavelength Stability | - | |
| Integration Time | 0.1ms-10.0s | Linearity Correction | >99.0% | |
| Color Coordinate Stability | - | Weight | 530g | |
| High-Order Spectrum Suppression | Linear variable long-pass filter | |||
The high-speed fiber-optic spectrometer provided by LBTEK adopts a Czerny–Turner optical design. Based on specific wavelength ranges, the system is optimized through the selection of gratings, mirrors, and CMOS sensors to achieve excellent spectral resolution and signal-to-noise ratio. Data transmission is implemented via a high-speed USB Type-C interface, meeting the requirements of high-frame-rate spectral acquisition. The accompanying LBSpectra control software, developed on a C++ platform, enables interactive operations such as dragging, zooming, peak identification, spectral smoothing, and normalization. It also integrates multiple measurement modules for transmission, reflection, and color analysis, while supporting long-term monitoring and periodic data sampling. In addition, the system provides TTL synchronization triggering and supports SDK integration in C/C++, LabVIEW, and C#, facilitating seamless system-level integration.

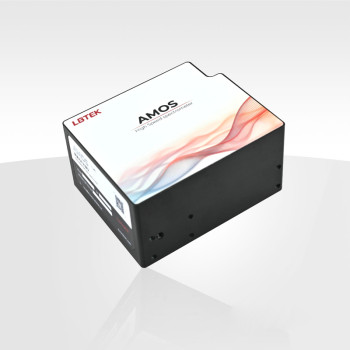

The LBTEK AMOS Fiber-optic Spectrometer is specifically designed and optimized for high-speed spectral applications, with a wavelength response range covering 200–1100 nm. Based on an M-type Czerny–Turner optical design, the AMOS spectrometer offers low stray light and high spectral resolution. It integrates a Hamamatsu high-sensitivity 2048-pixel linear CMOS sensor together with a 16-bit, 6 MHz A/D converter, delivering a high signal-to-noise ratio and a dynamic range of 4000:1. The AMOS communicates with the host computer via a high-speed USB Type-C interface, supporting a maximum frame rate of up to 1 kHz, making it suitable for demanding high-speed measurement scenarios. The spectral range and resolution depend on the selected grating and entrance slit, and LBTEK also provides customized configurations to meet specific user requirements.
