| Code | 671596 | Type | Science Workstation | |
| Breadboard Size | 300mm × 300mm | Load Capacity | 20kg | |
| Other |
Includes support rod |

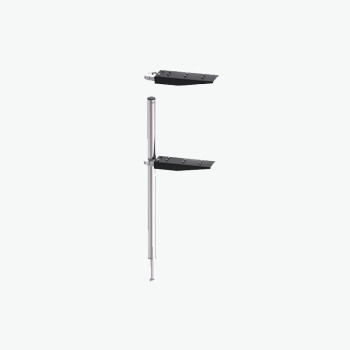

The breadboard mounting bracket supports 300 mm × 300 mm breadboards with a maximum load capacity of 20 kg. It uses a hinged locking clamp for quick installation and removal and features a rigid steel structure. When paired with the SW-AJ01 hinged locking clamp, the bracket can rotate around the rod while maintaining vertical positioning.
The assembly includes a steel breadboard adapter bracket, a hinged aluminum alloy locking clamp, and one stainless-steel rod (Ø38 mm × 750 mm). The breadboard is mounted directly onto the adapter bracket, which is secured to the rod via the clamp. The rod can then be installed onto the workstation frame. The hinged locking clamp allows the unit to be mounted at any point along the rod without removing the breadboard.
Two models are available: SW-BMR01, which includes the 750 mm rod, and SW-BMR01-N, which does not. The 300 mm × 300 mm breadboard itself is not included and can be purchased separately (LBTEK MBB-3030). For those requiring longer rods, a 1000 mm option (SW-EB100) is available separately.
