| Coad | 671591 | Type | High-Precision Programmable DC Power Supply | |
| Dimension(mm) | 225.0 x 136.0 x 275.0 | Maximum Output Power（W） | 220 | |
| Resolution | 10mV / 10mA | Screen Type | LED Display with 4-Digit Voltage and 3-Digit Current Readout | |
| Connector Type | USB Device | Accuracy | Voltage±0.5% of reading+3digits； Current±0.5% of reading+3digits | |
| Parallel Mode | Power Supply Regulation ≤ 0.01%+2mV Load Regulation ≤ 0.01%+2mV | Series Mode | Power Supply Regulation≤0.01%+5mV Load Regulation≤300mV | |
| Constant Voltage Mode | Power Supply Regulation≤ 0.01%+2 mV Load Regulation≤ 0.01%+2 mV Ripple and Noise350 μVrms / 2 mVpp（5Hz-1MHz） Recovery Time＜50 μs (Load change 50%, minimum load 0.5 A) | Constant Current Mode | Power Supply Regulation≤0.01%+250 μA Load Regulation≤0.01%+250 μA Ripple and Noise≤2 mArms | |
| Insulation Resistance | Between Base and Terminals: ≥20MΩ (DC 500 V) / Between Base and AC Power Line: ≥30MΩ (DC 500 V) | Setting Accuracy | Voltage±0.5% of reading+3 digits； Current±0.5% of reading+3 digits | |
| Input Power Supply | AC 100 V/120 V/220 V/230 V ±10%；50/60 Hz | Channel Type | CH1 Output Voltage：0-32V，Output Current：0-3.2A CH2 Output Voltage：0-32V，Output Current：0-3.2A CH3 Output Voltage：2.5/3.3/5.0V，Output Current 3.2A | |
| CH3 | Output Voltage ( 2.5/3.3/5 V ) ±8% Line Regulation≤0.01%+2mV Load Regulation≤0.01%+2mV Ripple & Noise350μVrms/2mVpp（5Hz-1MHz） | Save/Recall | 5 Sets |
LBTEK acousto-optic modulators, operating under Bragg diffraction, produce only first-order diffracted light and transmitted light. They can function as optical switches (cycling the light on and off at a set frequency) or variable attenuators (dynamically controlling the intensity of the transmitted or first-order diffracted light). These devices are widely used in fields such as laser marking, lithography, material processing, medical surgery, and micromachining. LBTEK offers both free-space and fiber-coupled acousto-optic modulators, allowing customers to choose based on their application needs. Matching RF drivers are also provided; by inputting different modulation signals, the drivers can generate specific waveforms for flexible control.

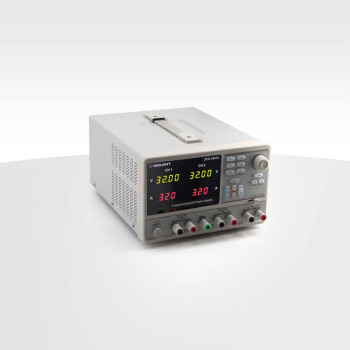

The LBTEK programmable DC power supply is compatible with 100V/120V/220V/230V input voltages and offers a resolution of 10 mV and 10 mA. With excellent setting and readback accuracy, it ensures precise and clean output, accurately simulating even very small changes in voltage or current. Channels CH1 and CH2 can be connected in series or in parallel, extending the power output range. The power supply provides five groups of local system parameter storage, allowing users to store, recall, and delete settings in the local memory, making it easy to return to the required configurations.
