| Coad | 671589 | Type | High-Precision Benchtop Multimeter | |
| Dimension(mm) | 345.45 x 260.29 x 107.21 | Frequency | 3Hz - 1MHz | |
| Reading Resolution | 5? | Screen Type | 4.3-inch TFT Display, 480×272 Resolution | |
| Power Consumption | 25 VA max | Power Supply | AC 100 V-120 V，45 Hz-66 Hz / AC 200 V-240 V，45 Hz-66 Hz | |
| Connector Type | 10/100Mbit LAN，USB Device， USB Host(Remote) | Storage Temperature | -20 - 70℃ | |
| Operating Temperature | 0 - 50℃ | Voltage Measurement Range | 100nV - 1000V DC 100nV - 750Vrms AC | |
| Capacitance Measurement Range | 2nF - 100mF | Current Measurement Range | 100pA - 10A DC 100pA - 10A AC | |
| Resistance Measurement Range | 100uΩ - 100MΩ | Programming Language | Standard SCPI Compatible with the Latest Mainstream Multimeter Command Set |

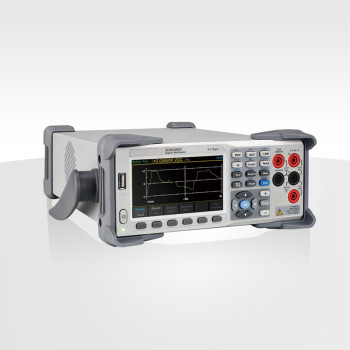

The LBTEK high-precision benchtop multimeter is designed for DC/AC voltage, DC/AC current, 4-wire resistance, capacitance measurement, diode testing, as well as period and temperature measurements. It provides extensive calculation functions including maximum, minimum, average, standard deviation, relative measurement, bar graph, histogram, trend chart, dB/dBm, and limit testing. The instrument features a 4.3-inch true-color TFT-LCD display with 480×272 resolution, selectable 5½ or 6½ digit reading resolution, and built-in cold junction compensation for thermocouples. It supports standard SCPI remote control commands, PC software, and is compatible with the latest mainstream multimeter command sets. With a graphical user interface for easy operation, built-in help system, Chinese/English menu options, dual-window display, and support for both USB drive and local storage, file management becomes more efficient. Widely used in electronic measurement, testing, and maintenance, this high-precision multimeter is an indispensable tool for modern laboratories.
LBTEK offers two models of high-precision benchtop multimeters, the SDM3055 and SDM3065X, with reading resolutions of 5½ and 6½ digits respectively. They are capable of measuring a wide range of parameters including DC/AC voltage, DC/AC current, resistance, and capacitance. The instruments support standard SCPI remote control commands, PC software, and are fully compatible with the latest mainstream multimeter command sets. With a graphical user interface, they provide simple and convenient operation.
