| Coad | 671542 | Type | INOVANCE CMOS Camera | |
| Dimension(mm) | 29.0 x 29.0 x 42.0 | Pixel Size (µm) | 4.0 x 4.0 | |
| Effective Pixels (px) | 1280×1024 | Shutter Mode | Global Shutter | |
| Color | Monochrome | CMOS Size | 1/2.7'' | |
| Applicable Wavelength Range | 300 - 1100nm | Resolution | 1.3MP | |
| Optical Interface | C-Mount | Frame Rate | 92fps | |
| Data Interface | GigE | Storage Temperature | - 30 - 80℃ | |
| Operating Temperature | 0 - 50℃ | Signal-to-Noise Ratio | 38dB | |
| Pixel Depth | 8bit | Dynamic Range | 60dB | |
| Exposure Time | 16.0μs - 1.0s | Weight | 88g | |
| Power Supply (Power Consumption) | 12V（3.0W） | Power Supply | PoE power supply / DC power input via Hirose connector, voltage range 6 V–24 V |

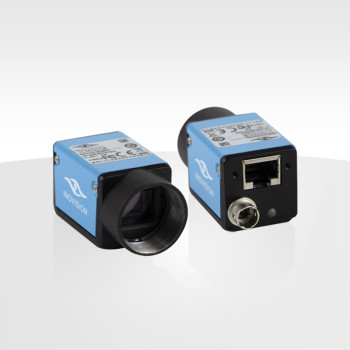

LBTEK’s INOVANCE CMOS cameras use a GigE data transmission interface and support flat-field correction. They offer multiple operating modes, including software and hardware triggering, and are equipped with onboard memory to handle burst data transmission. The software supports a range of ISP functions, including sharpening, noise reduction, gamma correction, lookup tables, black level correction, as well as brightness and contrast adjustment. The mechanical housing features a C-Mount optical interface, allowing easy integration into 30 mm coaxial systems. INOVANCE CMOS cameras deliver exceptional cost-performance and are widely used in image inspection, robotics, logistics, surveillance, and barcode scanning applications.
*Note: Software download includes a user manual and development tools.*
LBTEK’s INOVANCE CMOS cameras use a GigE data transmission interface, with resolution options ranging from 3 MP to 6.3 MP. They feature a compact design and user-friendly software, supporting multiple operating modes such as software and hardware triggering. The mechanical housing is equipped with a C-Mount optical interface for easy integration into 30 mm coaxial systems, and the bottom includes four M2 and three M3 threaded holes for free-space mounting via rod holders. The GPIO interface provides one opto-isolated input, one opto-isolated output, and one configurable input/output channel without opto-isolation. A power supply and data cable are included.
