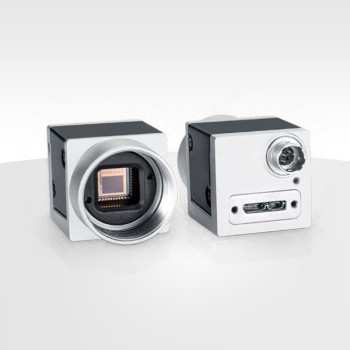

| Coad | 671539 | Type | Basler CMOS Camera | |
| Dimension(mm) | 29.3 x 29.0 x 29.0 | Pixel Size（μm） | 1.85 x 1.85 | |
| Effective Pixels (px) | 4024×3036 | Shutter Mode | Rolling Shutter | |
| Color | Monochrome | CMOS Size | 1/1.7'' | |
| Applicable Wavelength Range | 400 - 1000nm | Resolution | 12MP | |
| Optical Interface | C-Mount | Frame Rate | 31fps,20.7ke- | |
| Data Interface | USB 3.0 | Threaded Holes | Bottom (3 × M3, 4 × M2) | |
| Operating Temperature | 0 - 50℃ | Signal-to-Noise Ratio | 40.4dB | |
| Pixel Depth | 10 / 12bits | Dynamic Range | 70.3dB | |
| Sensor Area | 7.4 x 5.6mm | Operating System | Windows、Linux、macOS | |
| Dark Noise | 3.3e- | Exposure Control | Hardware Trigger or Camera API Programming | |
| Weight | 80g | Quantum Efficiency | 0.8 | |
| Power Supply (Power Consumption) | USB（3W） | |||
Basler CMOS cameras offer two optional data interfaces: GigE and USB 3.0. They feature high-pixel, high-frame-rate CMOS sensors, with frame rates up to 520 fps and resolutions ranging from 3.9 MP to 20 MP. The compact mechanical housing is equipped with a C-Mount optical interface, making integration into 30 mm coaxial systems straightforward. The bottom side provides three M3 and four M2 threaded holes for mounting in free-space setups. For monochrome sensor models, detailed specifications such as quantum efficiency, dark noise, full-well capacity, and signal-to-noise ratio are available.
Basler CMOS cameras are equipped with a USB 3.0 data transmission interface and feature high-pixel, high-frame-rate CMOS sensors, achieving frame rates up to 520 fps with resolutions ranging from 13 MP to 20 MP. The compact mechanical housing includes a C-Mount optical interface, allowing easy integration into 30 mm coaxial systems. The bottom of the housing is equipped with three M3 and four M2 threaded holes for free-space mounting. These cameras also offer advanced image processing features, including 5×5 debayering (to prevent color artifacts), false-color suppression, denoising, and sharpening enhancement.
