| Coad | 671529 | Type | Basler CMOS Camera | |
| Dimension(mm) | 42.0 x 29.0 x 29.0 | Pixel Size（μm） | 5.3 x 5.3 | |
| Effective Pixels (px) | 1282×1026 | Shutter Mode | Global Shutter & Rolling Shutter | |
| Color | Color | CMOS Size | 1/1.8'' | |
| Applicable Wavelength Range | 400 - 1000nm | Resolution | 2MP | |
| Optical Interface | C-Mount | Frame Rate | 60fps,- | |
| Data Interface | GigE | Threaded Holes | Bottom (3 × M3, 4 × M2) | |
| Operating Temperature | 0 - 50℃ | Signal-to-Noise Ratio | - | |
| Pixel Depth | 12bits | Dynamic Range | - | |
| Sensor Area | 6.8 x 5.4mm | Operating System | Windows、Linux、macOS | |
| Dark Noise | - | Exposure Control | Hardware Trigger or Camera API Programming | |
| Weight | 90g | Quantum Efficiency | - | |
| Power Supply (Power Consumption) | NPE（2.6W） / 12VDC（2W） | |||

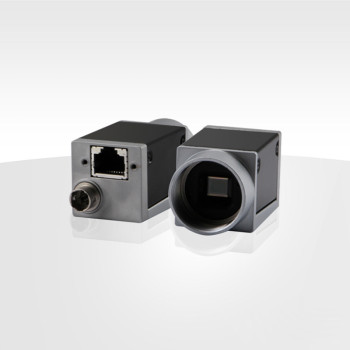

Basler CMOS cameras offer two optional data interfaces: GigE and USB 3.0. They feature high-pixel, high-frame-rate CMOS sensors, with frame rates up to 520 fps and resolutions ranging from 3.9 MP to 20 MP. The compact mechanical housing is equipped with a C-Mount optical interface, making integration into 30 mm coaxial systems straightforward. The bottom side provides three M3 and four M2 threaded holes for mounting in free-space setups. For monochrome sensor models, detailed specifications such as quantum efficiency, dark noise, full-well capacity, and signal-to-noise ratio are available.
Basler CMOS cameras are equipped with a GigE data transmission interface and use high-pixel, high-frame-rate CMOS sensors, achieving frame rates of up to 60 fps with resolutions ranging from 13 MP to 20 MP. The compact mechanical housing features a C-Mount optical interface, enabling seamless integration into 30 mm coaxial systems. The bottom side is equipped with three M3 and four M2 threaded holes for free-space mounting. Except for models acA1300-60gm, acA1300-60gc, and acA1300-60gmNIR, the cameras provide additional features such as 5×5 debayering (to prevent color artifacts), false-color suppression, denoising, and sharpening enhancement.
