| Code | 671481 | Type | Spectroscopy Cameras | |
| Active area (L x W, pixels) | 1340.0 x 100.0px | Pixel Size | 20.0 x 20.0μm |
| Image Area | 26.8 x 2.0mm | Air Cooled,No Liquid Assist | -95℃ | |
| 20℃ Liquid Assist | -100℃ | Thermostatic Precision | 2±0.05℃ |
| Vertical Clock Speeds | 14,8,10,20 μs/row(software selectable) | Maximum Spectraper Second | Full Vertical Binning: 1,650 Cropped Mode, 10 rows: 3,500 Kinetics Mode, 1 row: up to 250 kHz | |
| Full Frame Rate | 218 | Dark Current | 0.0015e-/pix/sec |
| ADC Speeds | Low Noise: 2 x 100 kHz, 2 x 1 MHz, 2 x 4 MHz / High Speed: 2 x 5 MHz, 2 x 10 MHz, 2 x 16 MHz | System Read Noise | ≤3 e- @ 100 kHz / ≤10 e- @ 1 MHz | |
| Readout Modes | Full Frame, Cropped, Bi-Directional, Kinetics | Full Well Capacity | 128ke- |
| Linearity | ≥99% | Digitization | 16bits | |
| Data Interface | USB 3.0 | Certification | CE, UL/CSA, FCC Part 15, VCCI (Japan), BSMI (Taiwan), KN32 & KN35 (Korea), AS/NZS (Australia, New Zealand) |

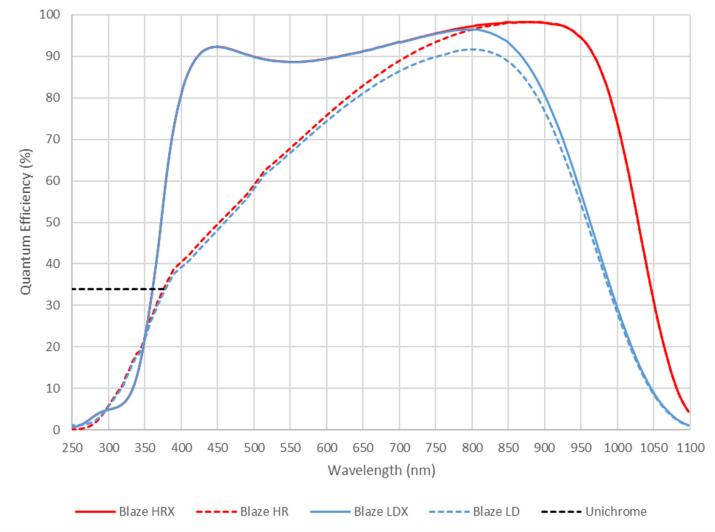

| 1/0 Signals | Trigger In, TTL Out, Readout Monitor, Expose Monitor, Shutter Monitor, External Shutter Control | Sensor | Exclusive Back-Illuminated Fully Depleted High-Resistivity-Silicon HRSensor (highest NIR quantum efficiency, includes anti-fringing coating) |

LBTEK Objective Oil is designed for use with oil immersion microscope objectives. Due to the high magnification of oil immersion lenses, the first lens is small, and the light transmission is limited. When light passes through objects with different densities of media, some of the light refracts and scatters, leading to issues such as reduced light intensity, dimmed field of view, and unclear specimen observation. To solve this problem, a medium with a refractive index similar to that of the glass slide is added between the lens and the slide to compensate for the light loss. The refractive index of LBTEK objective oil is closest to that of LBTEK cover glass, and when used together, it maximizes the objective's light-gathering ability.
