| Code | 671478 | Type | Science Workstation | |
| Panel Size | 300mm × 950mm | Compatible Products | SWD0609, SWA0609 | |
| Load Capacity | 50kg | Other | Rods not included |

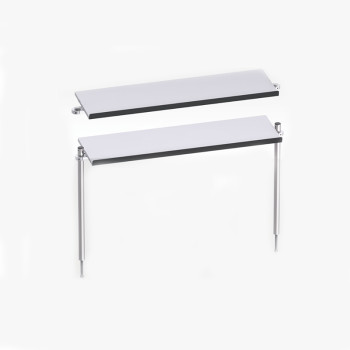

The angled shelf uses hinged locking clamps for quick installation and removal. It is compatible with SWD0609, SWA0609, SWD0912, and SWA0912 science workstations, and offers a uniform load capacity of 50 kg. The tabletop is made of high-strength wood and is tilted at 12° for easier viewing, operation, and equipment storage.
The assembly consists of two hinged aluminum alloy clamps, two stainless-steel support rods (Ø38 mm × 750 mm, not included in SW-TP09-N and SW-TP12-N), a wooden panel, and a steel edge guard. The rods are fixed to the workstation, while the panel is attached to the rods via the clamps, and the guard is mounted along the panel edge. Two models are available to fit SWD0609/SWA0609 and SWD0912/SWA0912 workstations respectively.
The shelf height can be adjusted to suit user needs. Once the desired height is set, the clamps can be tightened with a wrench to secure the panel, allowing the shelf to evenly support up to 50 kg. The 12° downward tilt improves visibility and accessibility in the lab. The 20 mm raised edge prevents equipment from sliding off the panel. If you prefer 1000 mm mounting rods (SW-EB100) instead of the included 750 mm rods, they can be purchased separately from the LBTEK website.
