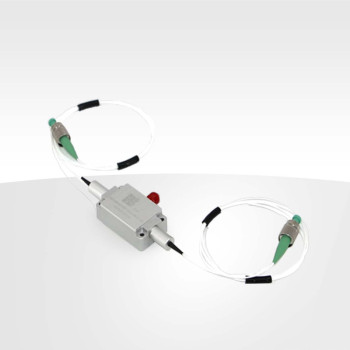

| Coad | 671436 | Type | Acousto-Optic Modulator (AOM) | |
| Dimension(mm) | 93.0 x 23.0 x 11.0 | Wavelength(nm) | 1550 ± 20 | |
| Clear Aperture（mm） | - | RF Signal Frequency (MHz) | 80 | |
| Storage Temperature | -20 - 70℃ | Operating Temperature | -10 - 40℃ | |
| Optical Component Material | Tellurium Dioxide (TeO?) | Fiber Interface | FC/APC | |
| Fiber Type | PM1550 | Fiber Length | ＞0.8m | |
| RF Signal Input Method | SMA | RF Signal Frequency | 80MHz | |
| RF Signal Rated Power | MAX 2W | RF Cable Length | - | |
| Extinction Ratio | ≥50.0dB | Polarization Extinction Ratio | ≥20.0dB | |
| Insertion Loss | ≤3.0dB | Laser Average Power | 0.5W | |
| Diffraction Efficiency | - | Diffraction Angle | - | |
| Input Impedance | 50Ω | Transmittance | - | |
| VSWR | ＜1.2:1 | Laser Damage Threshold | - | |
| Cooling Method | Conduction Cooling | Acoustic Mode | Longitudinal Wave |
Traders City price 3645.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
