| Coad | 671435 | Type | Acousto-Optic Modulator (AOM) | |
| Dimension(mm) | 70.0 x 24.0 x 13.5 | Wavelength(nm) | 1030 - 1080 | |
| Clear Aperture（mm） | - | RF Signal Frequency (MHz) | 200 | |
| Storage Temperature | -20 - 70℃ | Operating Temperature | -10 - 40℃ | |
| Optical Component Material | Tellurium Dioxide (TeO?) | Fiber Interface | FC/APC | |
| Fiber Type | PM980 | Fiber Length | ＞0.8m | |
| RF Signal Input Method | SMA | RF Signal Frequency | 200MHz | |
| RF Signal Rated Power | MAX 1.5W | RF Cable Length | - | |
| Extinction Ratio | ≥45.0dB | Polarization Extinction Ratio | ≥20.0dB | |
| Insertion Loss | ≤3.0dB | Laser Average Power | 1.0W | |
| Diffraction Efficiency | - | Diffraction Angle | - | |
| Input Impedance | 50Ω | Transmittance | - | |
| VSWR | ＜1.2:1 | Laser Damage Threshold | - | |
| Cooling Method | Conduction Cooling | Acoustic Mode | Longitudinal Wave |
Under the effect of Bragg diffraction, the LBTEK acousto-optic modulator produces only first-order diffracted light and transmitted light. It can be used as an optical switch (periodically switching the light at a set frequency) or as a variable attenuator (dynamically controlling the intensity of the transmitted or first-order diffracted light). It is suitable for applications such as laser marking, lithography, material processing, medical surgery, and micromachining. LBTEK offers both free-space and fiber-coupled acousto-optic modulators, allowing customers to choose according to their application scenarios. Matching RF drivers are also provided, capable of generating specific waveforms by inputting different modulation signals.

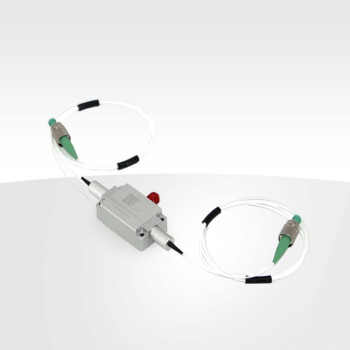

The LBTEK acousto-optic modulator can be used as an optical switch (periodically switching the light at a set frequency) or as a variable attenuator (dynamically controlling the intensity of the transmitted or first-order diffracted light). The fiber-coupled acousto-optic modulators from LBTEK feature fiber lengths greater than 0.8 m with FC/APC connectors, ensuring convenient integration for customers. LBTEK offers fiber-coupled acousto-optic modulators for wavelengths of 780 nm, 1064 nm, and 1550 nm, and provides matching RF drivers.
