| Coad | 671378 | Type | Beam Quality Analyzer | |
| Beam Diameter (μm) | 29.0 - 11.2 | Wavelength(nm) | 375 - 1100 | |
| Detection Area (mm) | 11.2 x 11.2 | PC Interface | USB 3.1 | |
| Single Pixel Size | 5.5 x 5.5μm | Dimensions | 36.10 x 39.00 x 53.55 | |
| Resolution | 2048×2048 | Dynamic Range | 58dB | |
| Exposure Time | 40μs - 1s | Maximum Frame Rate | 80fps | |
| Chip Size | 1.0inch | Sensor Type | CMOS 12 bit |

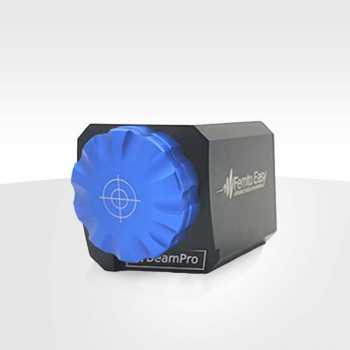

The LBTEK beam quality analyzer features a user-friendly interface that provides comprehensive analysis and statistical data for laser beams. Its BeamPro software uses standard communication protocols and allows multiple BeamPro instances to be controlled via a PC. The system supports wavelength ranges of 375 nm–1100 nm or 190 nm–1100 nm and can analyze beam diameters up to 25 mm. With various detector areas, pixel sizes, and resolutions, as well as exposure times down to the microsecond level, it meets a wide range of application requirements. The analyzer supports multiple parameters and methods (including ISO-compliant calculations) and offers client/server interfaces with network-based remote control.
An integrated power meter allows for user calibration, eliminating the need for an external power meter and enabling ideal synchronization and optimization of both power and beam shape. To compensate for ambient light, the average background intensity is subtracted from the beam profile measurement. Automatic exposure and gain control help the camera adapt to real beam intensity and achieve better imaging quality. Each analyzer is shipped with the BeamPro software package for immediate deployment.
The LBTEK beam quality analyzer features a simple and intuitive user interface, making operation easy and efficient. It offers multiple working wavelength options, detector areas, pixel sizes, and resolutions to meet diverse application requirements. The system supports various parameters and methods (including ISO-compliant calculations) and provides client/server interfaces with network-based remote control. Its automatic exposure and gain control functions allow the camera to adapt to actual beam intensity for improved imaging quality. Each analyzer is shipped with the BeamPro software package, enabling users to start analysis immediately.
