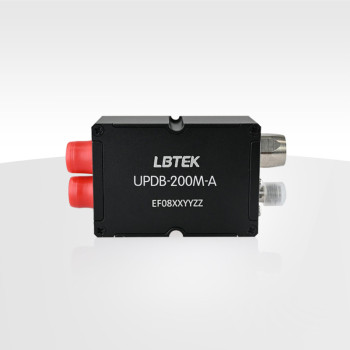

| Coad | 671366 | Type | Miniature Balanced Photodetector | |
| Dimension(mm) | 49.4 x 34.4 x 21.0 | Wavelength(nm) | 320 - 1000 | |
| Bandwidth (MHz) | 75 | Output Coupling Method | AC | |
| Storage Temperature | -40 - 70 ℃ | Operating Temperature | 0 - 40 ℃ | |
| NEP | 9.0pW/√Hz | Output Interface | SMA | |
| Damage Power Threshold | 20.0mW | Equivalent Output Noise | ≤2.2/3.4/4.8mV | |
| Active Area | 0.4 | Output Voltage | ±3.5 V High Z | |
| Weight | ≤100g | Saturation Optical Power | 70.0/46.0/35.0μW | |
| Common-Mode Rejection Ratio | ≥30dB | Power Supply | DC 5 - 12 V | |
| Responsivity | 0.51 A/W@780nm | Gain | 100/150/200 kV/A High Z，50/75/100 kV/A High Z |
Traders City price 1135.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
