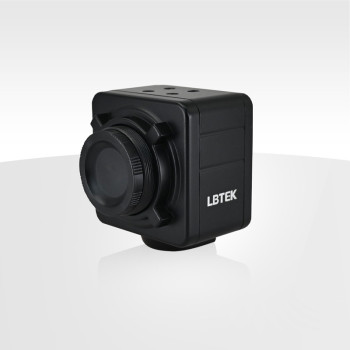

| Coad | 671345 | Type | Fixed-Gain Photodetector | |
| Dimension(mm) | 53.0 x 50.0 x 50.0 | Wavelength(nm) | 400 - 1100 | |
| Bandwidth (MHz) | DC-0.02 | Photosensitive Area Diameter (mm) | 2.5 x 2.5 | |
| Storage Temperature | -25 - 70℃ | Operating Temperature | 10 - 50℃ | |
| NEP | 0.18pW/√Hz | Rise Time | 18.0μs | |
| Maximum Optical Power | 100nW@850nm | Minimum Optical Power | 25pW@850nm | |
| Maximum Output Voltage | 0-6V（High-Z） | Sensitivity | - | |
| Power Supply | ±9.0 V DC，100mA | Electrical Output Type | BNC | |
| Peak Spectral Responsivity | 0.59A/W@850nm | Accumulated Noise (RMS) | 1.5mV | |
| Transimpedance Gain | 100MV/A（High-Z） | Detector Type | Silicon photodetector |
Traders City price 673.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
